Hybrid Inverter

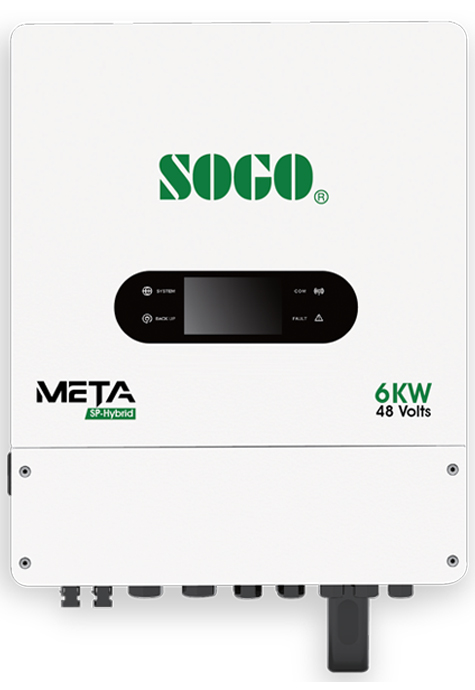

  • META Hybrid Inverter 6KW
  • Max. Input Power: 12,000W
  • Rated Power: 6,000W
  • Peak Power: 12kW for 15 seconds
  • MPPT Efficiency: >99.9%
  • PV Input Voltage Range: 150V - 450V
  • Max. Input Current: 18A + 18A
  • Max. Short Circuit Current: 22.5A + 22.5A
  • No. of MPPT: 2
  • Battery Type: Lead-acid / Lithium-ion
  • Battery Voltage Range: 40V – 60V (48V)
  • Max. Charging Current/ Discharging Current: 135A
  • Communication Interface: Self-adaptation to BMS
  • Rated AC Input/ Output Current: 27.3A
  • Rated AC Input/ Output Voltage Range: 220/230V (Single Phase)

    • Catalogue

    Hybrid Inverter

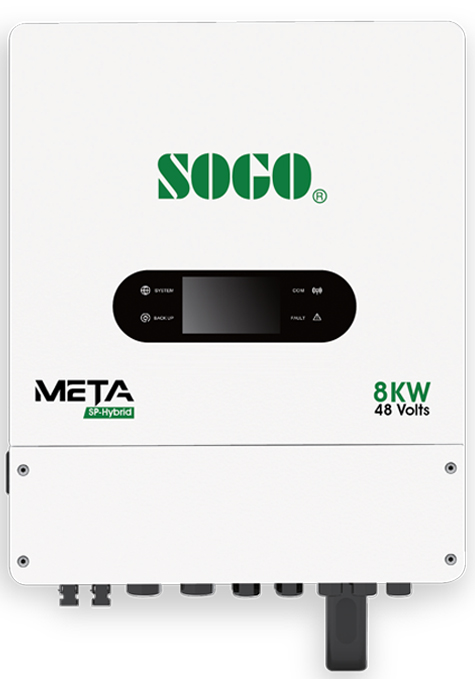

  • META Hybrid Inverter 8KW
  • Max. Input Power: 16,000W
  • Rated Power: 8,000W
  • Peak Power: 16kW for 15 seconds
  • MPPT Efficiency: >99.9%
  • PV Input Voltage Range: 150V – 450V
  • Max. Input Current: 30A+18A
  • Max. Short Circuit Current: 37.5A + 22.5A
  • No. of MPPT: 2
  • Battery Type: Lead-acid / Lithium-ion
  • Battery Voltage Range: 40V – 60V (48V)
  • Max. Charging Current/ Discharging Current: 190A
  • Communication Interface: Self-adaptation to BMS
  • Rated AC Input/ Output Current: 36.4A
  • Rated AC Input/ Output Voltage Range: 220/230V (Single Phase)

    • Catalogue

    Hybrid Inverter

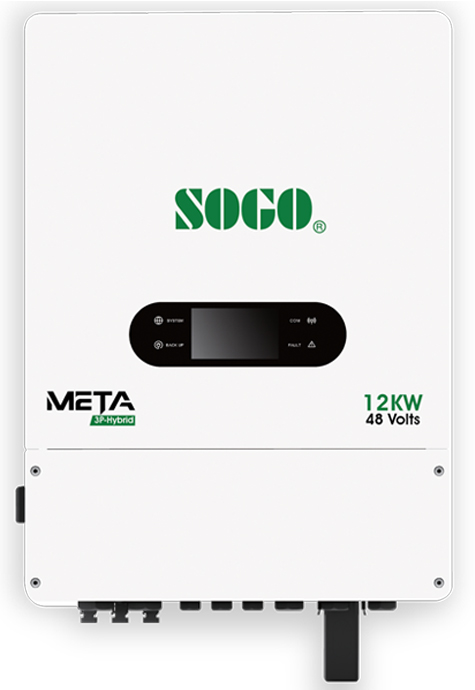

  • META Hybrid Inverter 12KW
  • Max. Input Power: 24,000W
  • Rated Power: 12,000W
  • Peak Power: 24kW for 15 seconds
  • MPPT Efficiency: >99.9%
  • PV Input Voltage Range: 200V – 800 V
  • Max. Input Current: 36 A + 18 A
  • Max. Short Circuit Current: 45A + 22.5A
  • No. of MPPT: 2
  • Battery Type: Lead-acid / Lithium-ion
  • Battery Voltage Range: 40V – 60V (48V)
  • Max. Charging Current/ Discharging Current: 250A
  • Communication Interface: Self-adaptation to BMS
  • Rated AC Input/ Output Current: 18.2A (Per Phase)
  • Rated AC Input/ Output Voltage Range: 220/230V (Three Phase)

    • Catalogue
